Ideal for gate, globe, check, safety, and control valves.
Change currency
- Details
- Specifications
- Suitable for valves with flat seats ø 50 – 200 mm (2” – 8”)
- Individually driven grinding heads for absolute flat seats
- Available with compressed air drive unit (6 – 7 bar), electric battery drive unit or electric 110/220V drive unit
- All drive units are reversible and have variable grinding speed
- Easy to change between gate and globe valve grinding
- Only three sizes of abrasive discs required for full seat range
- Self-adhesive grinding discs for fast attachment to the grinding heads.
- Supplied with rough, medium and fine grinding discs

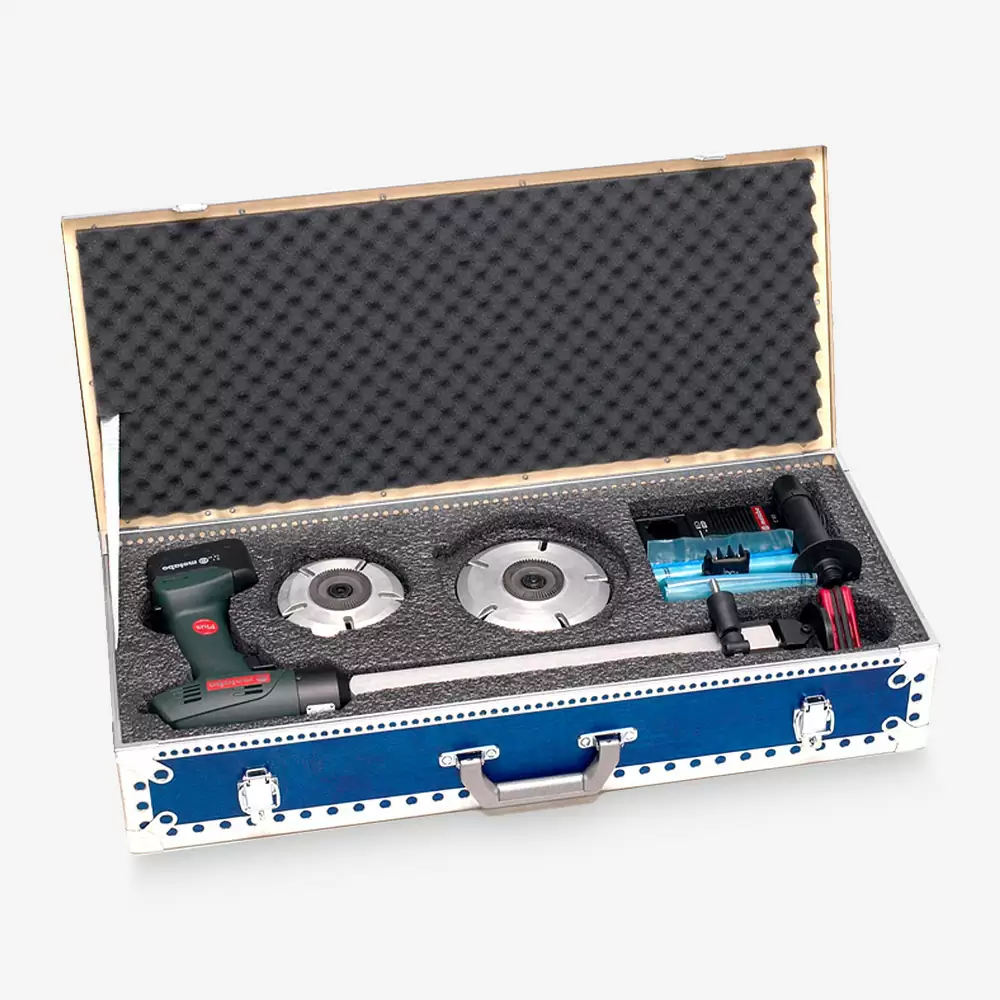

- Heavy duty carrying/storage case for the complete machine with all the necessary accessories
- Grinding heads for angled seats are available
- Self-adhesive grinding discs 40 to 1000 grit are available
- Diamond grinding discs available
- Adjustable guiding plates for extra stability available
- A: 50–200 mm (2″–8″)
- B: 39 mm (1.56″) min
- C: 100 mm (4″) min, 600 mm (24″) standard, 1000 mm (60″) max (option)
- D: 80–257 mm (3.20″–10.8″)
- Carrying case: 750 x 615 x 135 mm (30″ x 24″ x 5″)
- Total weight: 17 kg (37.5 lbs)
