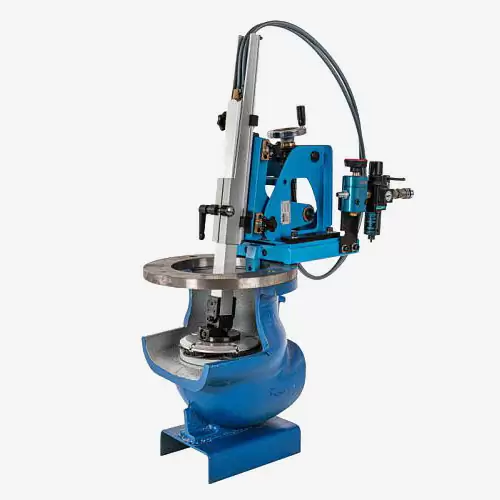

A midrange portable machine for gate, parallel slide, globe, check, safety and control valves, discs and wedges.
Change currency
- Details
- Specifications
- Suitable for valves with flat Seats ø 50 – 300 mm (2” – 12”)
- Individually driven grinding heads for perfectly flat seats
- Gives you an absolutely flat sealing surface.
- Air drive unit as standard 6 – 7 bar
- Electric drive unit available
- Variable grinding speed on all drive units
- Supplied with a mounting plate for grinding discs and wedges
- Self-adhesive grinding discs for quick attachment to the grinding heads
- Supplied with rough, medium and fine grinding discs
- Heavy duty carrying/storage case for the complete machine with all the necessary accessories
- Extended grinding heads available
- Very thin section driving heads available
- Grinding heads for angled seats available
- Self-adhesive grinding discs 40 to 1000 grit available
- Diamond grinding discs available
A: 50–300 mm (2″–12″)
B: 39 mm (1.56″) min
C: 100 mm (4″) min, 600 mm (24″) standard, 1000 mm (60″) max (option)
D: 80–357 mm (3.20″–14.8″)
L: 570 mm (22.8″) min
Carrying case: 760 x 560 x 280 mm (30.4″ x 22.4″ x 11.2″)
Total weight: 39 kg (87.8 lbs)
